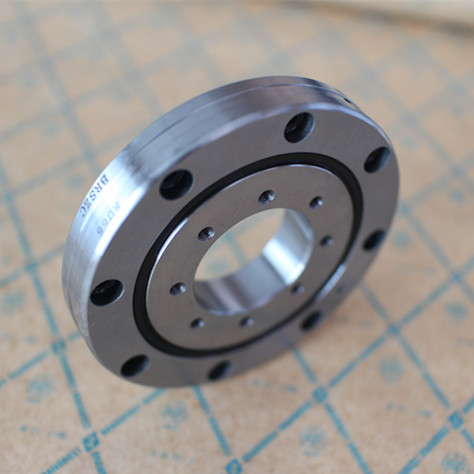

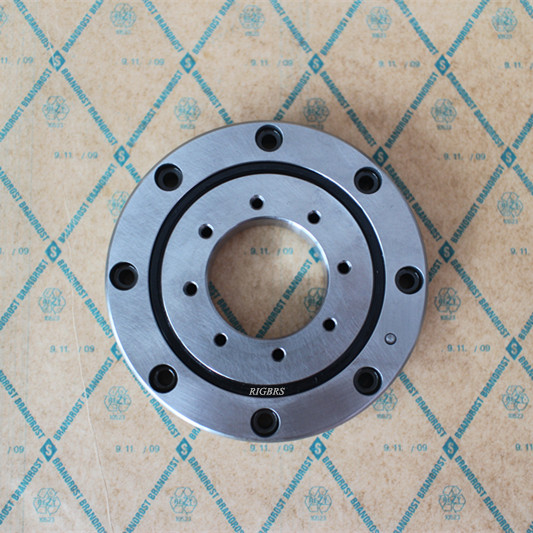

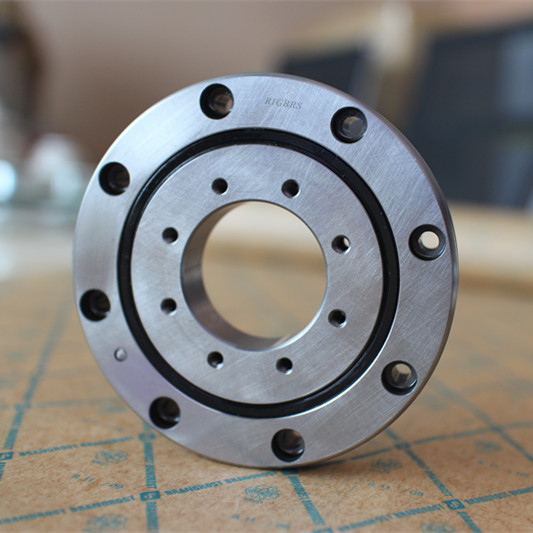

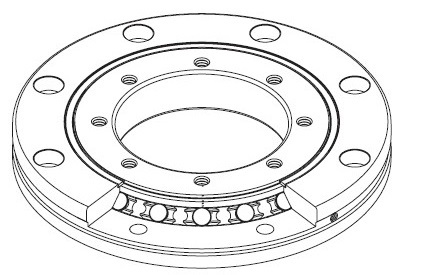

CRBF交叉滾子軸承內外圈一體化的結構使其能夠獲得穩定的旋轉精度和扭矩，適用于內圈或者外圈旋轉的場合，廣泛應用于工業機器人，機器人手臂，機器人腰部關節，回轉工作臺，通訊雷達等。
|
IKO Model (open) |
IKO Model (double seals) |
d(mm) | D(mm) | B(mm) | PCD1 | PCD2 | rsmin | Cr (KN) | Cor (KN) | Mass(kg) |
| CRBF 108 AT | CRBF 108 AT UU | 10 | 52 | 8 | 16 | 42 | 0.3 | 2.91 | 2.43 | 0.12 |
| CRBF 2012 AT | CRBF 2012AT UU | 20 | 70 | 12 | 28 | 57 | 0.3 | 7.6 | 8.37 | 0.31 |
| CRBF 2512 AT | CRBF 2512 AT UU | 25 | 80 | 12 | 35 | 67 | 0.6 | 8.61 | 10.6 | 0.4 |
| CRBF 3515 AT | CRBF 3515 AT UU | 35 | 95 | 15 | 45 | 83 | 0.6 | 17.3 | 20.9 | 0.66 |
| CRBF 5515 AT | CRBF 5515 AT UU | 55 | 120 | 15 | 65 | 105 | 0.6 | 20.1 | 27.7 | 0.96 |
| CRBF 8022 AT | CRBF 8022 AT UU | 80 | 165 | 22 | 97 | 148 | 0.6 | 51.1 | 72 | 2.63 |
| CRBF 8022 A | CRBF 8022 A UU | 80 | 165 | 22 | 97 | 148 | 0.6 | 51.1 | 72 | 2.6 |
| CRBF 8022 AD | CRBF 8022 AD UU | 80 | 165 | 22 | 97 | 148 | 0.6 | 51.1 | 72 | 2.6 |
